The MultiSpread™ 220 is one of our larger compost top dressing spreaders. The 220 is a two-wheel drive, pull-type topdresser that uses a widespread beater. The 220 is designed to carry 15 cu. ft. of sand, the Light-Material Sides™ increase that capacity to 1 cu. yd.
The Model 220 spreads wet and dry material up to 54 inches wide, depending on the type of material being applied.
The MultiSpread 220™ is available with a two-wheel ground-drive system or a hydraulic drive system. One thing that makes this compost top dressing spreader impressive is its “widespread beater” system. It can spread wet or dry material and depending on what you’re spreading, it can spread up to 54 inches (137.16 cm).
The overall width is only 45-inches so it can fit through gates, around trees and shrubs, and narrow areas while spreading material up to 54-inches.

Dual wheel ground drive system runs belt and beaters off wheel speed, allowing consistent spread at various speeds.

Our patented “Widespread Beater” is designed to spread a variety of wet or dry materials up to 54 inches (137.16 cm).

The engagement lever is adjustable to facilitate ease of use by the operator. Two wing nuts allow the handle to extend for easier reach for a variety of machines.

A 23-inch wide PVC belt delivers dry or moist material evenly and smoothly to the “widespread beater.”

The belt is easily adjustable by loosening four nuts on the conveyor roller slide on each side and then adjusted by using a single bolt and nut system on each side.

The tongue has five adjustment holes to accommodate a variety of towing vehicles. The hitch pivots to ensure the unit follows the contour of the turf.

The rear shroud is adjustable in four different positions to adjust material spread for varying conditions*
(Adjustable wing kit option available to control spread width)

Each unit has factory cutouts in the side for easy access while cleaning. These are ideally pressure washed after each day/job of use. Doing so will ensure material does not collect under the belt and roller setup.

A locked position, adjustable dial controls the spread depth for fine tuned topdressing. This is the spread depth control as the belt is tied to ground speed, it typically allows for up to 1/4″ thick spread in one pass.

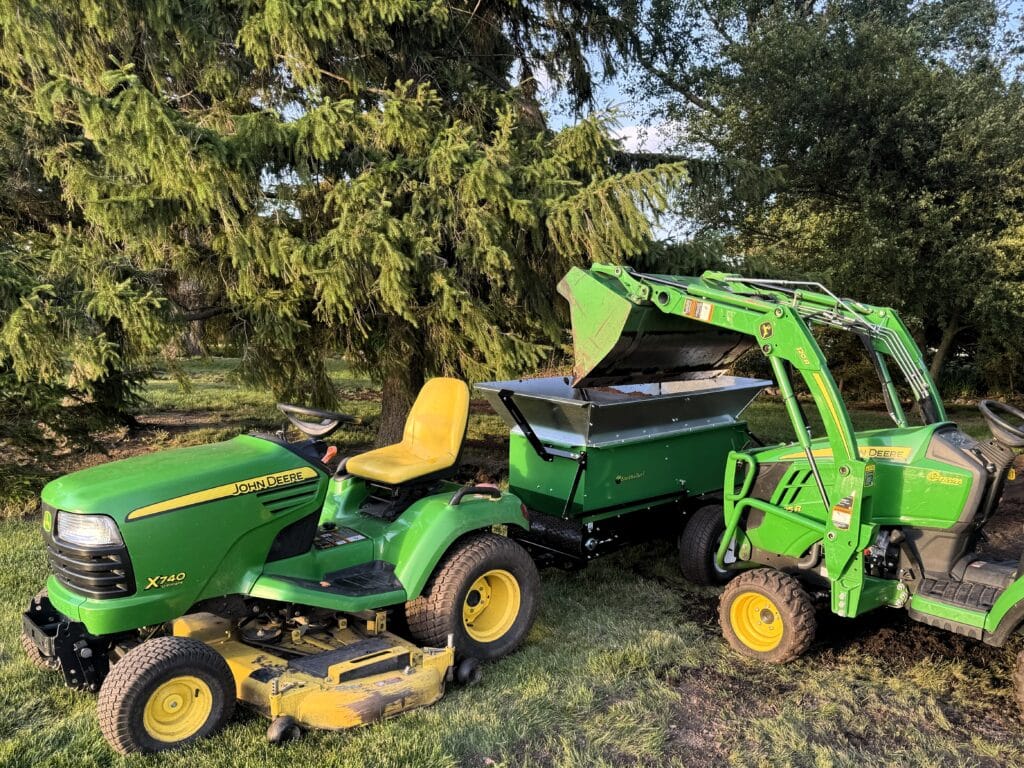

Increase the capacity to just above 1 cu. yd. Designed for use with lightweight materials such as compost, crumbed rubber, and calcined clay. Fully loaded weight should not exceed 1,500 lbs. The sides have an 69″ inside dimension and are ideal when loading with a 5 ft. bucket or smaller.

The optional wing kit allows operators to control the spread pattern by moving one or both wings inward.

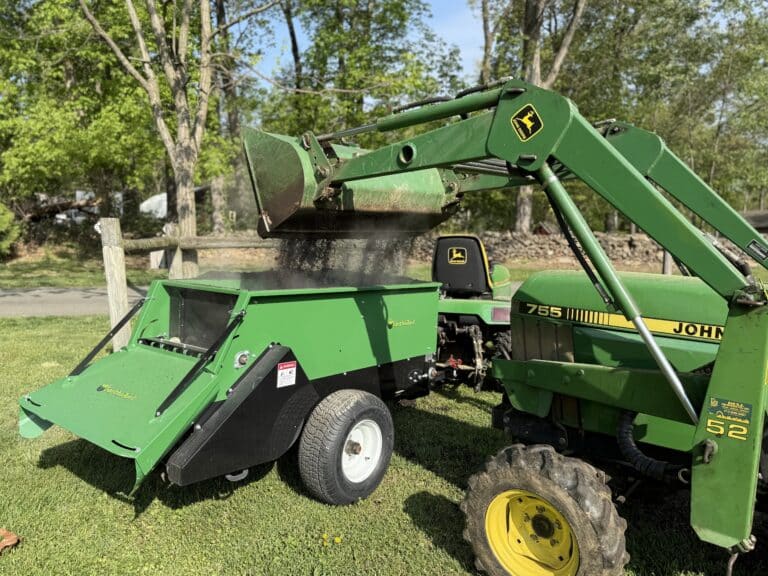

The optional loading chutes increase the loading width to 68-inches (from 57-inches) to reduce spillage when loading with a tractor loader.
| Capacity (Heaped) | 15 cu. ft. or 1/2 cu. yd. (0.42 m3) |
| Capacity w/ LMS Option (Heaped) | 27 cu. ft. or 1 cu. yd. (0.75 m3) |
| Max Load Weight | 1,725 lbs. (783 kg) |
| Box Width | 23.5 inches (59.7 cm) |
| Box Length | 57 inches (144.8 cm) |
| Total Height | 37.5 inches (95.3 cm) |
| Total Width (Turf Tire) | 48 inches (121.92 cm) |
| Total Width (Ag Tire) | 44 inches (111.76 cm) |
| Ground Clearance at Axle | 8 inches (20.32 cm) |
| Total Length | 99.3 inches (252.1 cm) |
| Spread Width | Up to 54 inches (137.16 cm) |
| Spread Thickness | Up to 0.25 inches (0.6 cm) |
| Spread System | Widespread Beater |
| Weight w/ Tires | 475 lbs. (215.5 kg) |
| Tire Size | 20.5 x 8.0-10 |
| Movement | Pull-Type |
| Drive | Ground Drive (Double Wheel) |
| Required Power | 16 HP (12 kW) |
| Build | 12/16 Ga. Bolted Steel, 2-Part Epoxy |

A few of the materials commonly spread by the MultiSpread™ 220 include compost, wood chips, sand, and other topdressing materials.

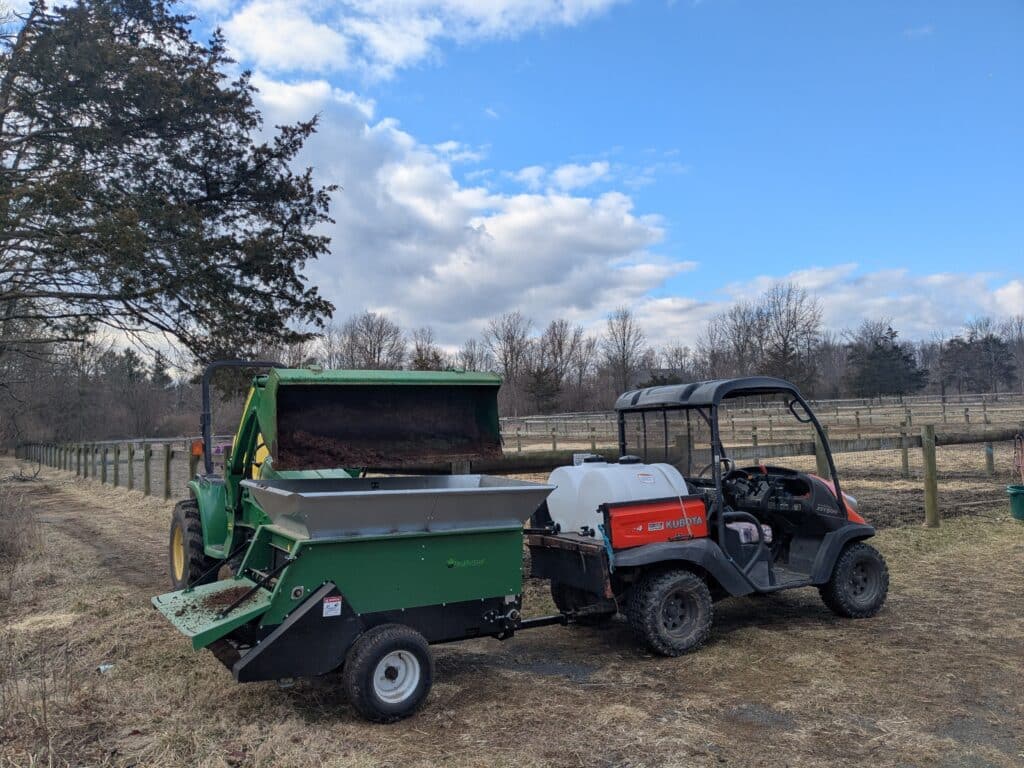

The MultiSpread™ 220 can be towed behind a heavy-duty lawn & garden tractor (18+ hp), a zero-turn lawn mower (25+ hp), ATV, UTV, golf cart, or compact tractor. The forward ground drive wheels provide all the power for the spreader.

Landscape contractors, market gardeners, schools & universities, sports & athletic field maintenance, municipalities, sports turf managers, and synthetic turf installations and maintenance companies all like this compost top dressing spreader!
