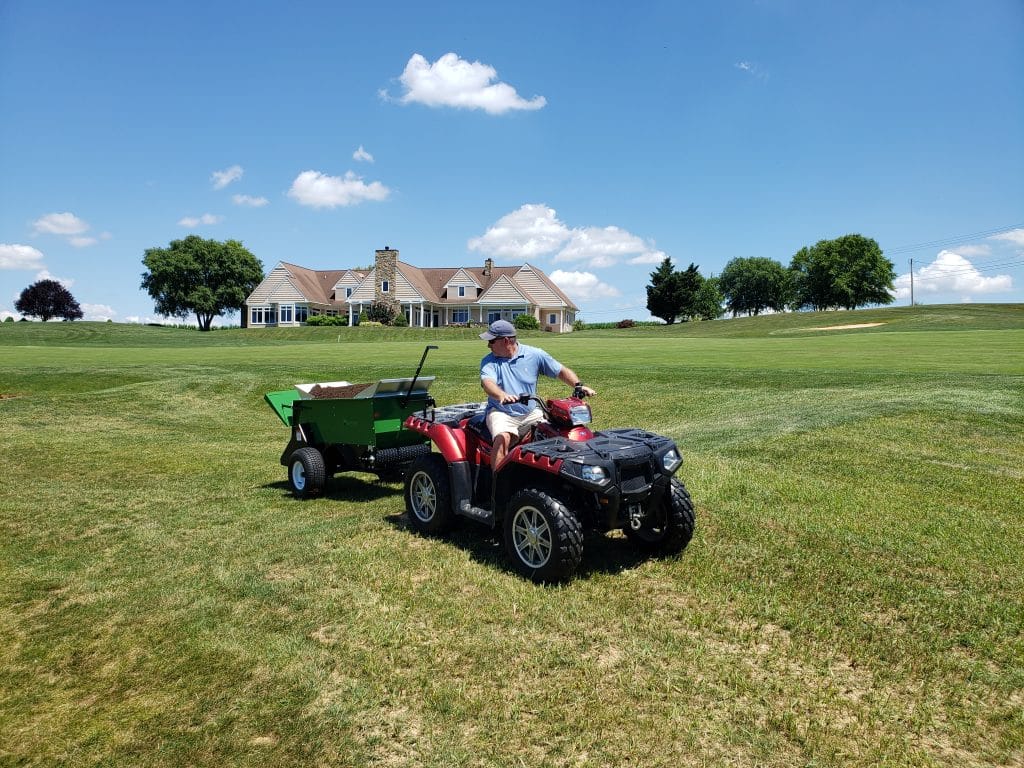

20200714 140317

MultiSpread™ 220

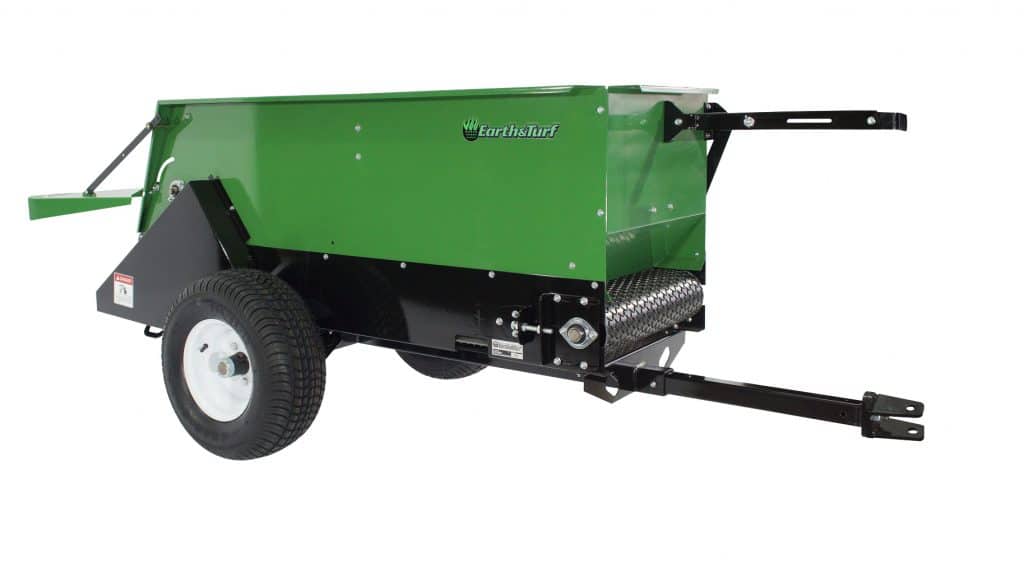

multispread 220 topdresser pull type earth and turf with spacing

The MultiSpread™ 220 is a two-wheel drive, pull-type topdresser that uses a widespread beater. The 220 is designed to carry 15 cu. ft. of sand, the Light-Material Sides™ increases that capacity to 1 cu. yd. The Model 220 spreads wet and dry material up to 60 inches wide, depending upon the type of material being applied.

The MultiSpread 220™ is available in two-wheel ground-drive or hydraulic drive versions. The spreading utiltizes a “widespread beater” system and will spread wet or dry material.

The overall width is only 45-inches so it can fit through gates, around trees and shrubs, and narrow areas while spreading material up to 60-inches.

Request a Quote
multispread 220 topdresser pull type earth and turf with spacing

The MultiSpread™ 220 is a two-wheel drive, pull-type topdresser that uses a widespread beater. The 220 is designed to carry 15 cu. ft. of sand, the Light-Material Sides™ increases that capacity to 1 cu. yd. The Model 220 spreads wet and dry material up to 60 inches wide, depending upon the type of material being applied.

The MultiSpread 220™ is available in two-wheel ground-drive or hydraulic drive versions. The spreading utiltizes a “widespread beater” system and will spread wet or dry material.

The overall width is only 45-inches so it can fit through gates, around trees and shrubs, and narrow areas while spreading material up to 60-inches.

Request a Quote
dsc05839aa
dsc05845aa
220 loading chutes
img 2072
earth and turf icon 1

What it spreads:

A few of the materials commonly spread by the MultiSpread™ 220 include sand, compost, calcined clay, wood chips, crumbed rubber, grit, de-icing materials, and topdressing materials.

earth and turf icon 2

Powered By:

The MultiSpread™ 220 can be towed behind a heavy-duty lawn & garden tractor (18+ hp), a zero-turn lawn mower (25+ hp), ATV, UTV, golf cart, or compact tractor. The forward ground drive wheels provide all the power for the spreader.

earth and turf icon 3

Who uses this machine?

Landscape contractors, market gardeners,  schools & universities, sports & athletic field maintenance, municipalities, sports turf managers, and synthetic turf installations and maintenance companies all use the Multispread™ 220.

Standard Features

2201

Ground Drive System:

The dual wheel ground drive provides a positive drive for the belt and beater.

img 20180802 155515451 300x169

Widespread Beater:

Our patented “Widespread Beater” is designed to spread a variety of wet or dry materials up to 60″ wide.

2205

Adjustable Lever:

The engagement lever is adjustable to facilitate ease of use by the operator.

img 20180802 155833888 top 300x169

Belt:

A 23-inch wide PVC belt delivers material evenly and smoothly to the “widespread beater.”

img 20180802 155628000 150x150

Adjustable Belt:

The belt is easily adjustable by loosening four nuts on the conveyor roller slide on each side and then adjusted by using a single bolt and nut system on each side.

2203

Adjustable Tongue:

The tongue has five adjustment holes to accommodate a variety of towing vehicles. The hitch pivots to ensure the unit follows the contour of the turf.

220rearshroud 150x150

Rear Shroud:

The rear shroud is adjustable in four different positions to maximize or control the spread pattern.

Optional Features

light mat sides 150x150

Light Material Sides:

Increase the capacity to just above 1 cu. yd. Designed for use with lightweight materials such as compost, crumbed rubber, and calcined clay. Fully loaded weight should not exceed 1,750 lbs.

220wing 150x150

Wing Kit:

The optional wing kit allows operators to control the spread pattern by moving one or both wings inward.

220chute 150x150

Loading Chutes:

The optional loading chutes increase the loading width to 63-inches (from 57-inches) to reduce spillage when loading with a tractor loader.

Specifications

Capacity:
Max Load Weight:
Box Width:
Box Length:
Total Height:
Total Width:
Total Length:
Spread Width:

15 cu. ft. (0.42 m3)
1,725 lbs. (783 kg)
23.5 inches (59.7 cm)
57 inches (144.8 cm)
37.5 inches (95.3 cm)
35.5 inches (90.2 cm)
99.3 inches (252.1 cm)
Up to 60 inches (152.4 cm)

Spread Thickness:
Spread System:
Weight w/ Tires:
Tire Size:
Movement:
Drive:
Required Power:
Build:

Up to 0.25 inches (0.6 cm)
Widespread Beater
475.1 lbs. (215.5 kg)
20.5 x 8.0-10
Pull-Type
Ground Drive (Double Wheel)
16 HP (12 kW)
12/16 Ga. Bolted Steel, Industrial Powder Coat
