Linear Field Aerators

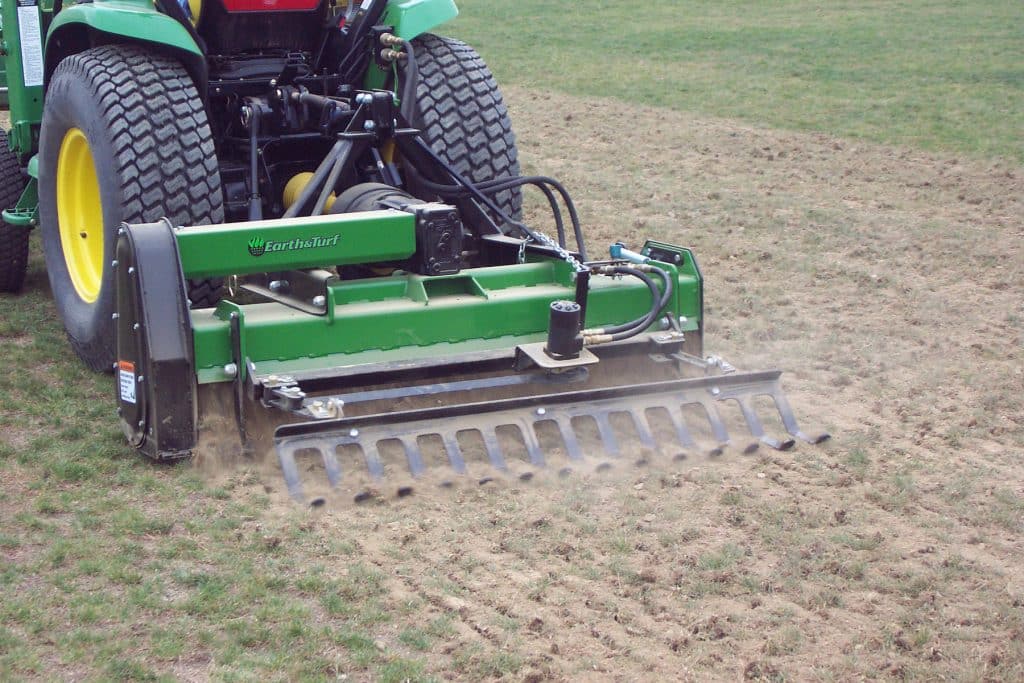

field aerator aerating baseball infield
field aerator 2

Earth & Turf’s Linear Field Aerators for sale are impressive models. Built with our customers in mind, our aerators help get the job done. The one-pass design of the Earth & Turf Linear aerator assures maximum cultivation of turf on athletic fields, golf course and polo grounds.

Linear aeration can reduce sports injuries. Our Linear Field Aerators for sale soften turf on athletic fields and arenas, making it more safe for sports players.

Soil and thatch restriction are permanently modified by the process of cutting vertical grooves (1/2″ wide & 3″ deep), then filling the grooves with topdressing materials such as calcined clay, compost, or sand.

Linear aeration improves water infiltration and retention, turf and root growth, nutrient absorption and organic decomposition.

Request a Quote

Linear aeration can reduce sports injuries by softening turf on athletic fields and arenas. Soil and thatch restriction are permanently modified by the process of cutting vertical grooves (1/2″ wide & 3″ deep), then filling the grooves with topdressing materials such as calcined clay, compost, or sand.

Linear aeration improves water infiltration and retention, turf and root growth, nutrient absorption and organic decomposition. The one-pass design of the Earth & Turf Linear aerator assures maximum cultivation of turf on athletic fields, golf courese and polo grounds.

Request a Quote
field aerator 3
field aerator 14
field aerator 7
absurdity 1920x1080
lawn aeration turfsaw aerator earth and turf copy

What this tool is:

The Linear Field Aerators for sale from Earth & Turf cut vertical grooves (1/2″ wide and 3″ deep) into turf and then fill those grooves with topdressing materials.

earth and turf icon 2

Powered by:

The Linear aerator is powered by PTO on a compact tractor with at least 35 horsepower.

earth and turf icon 3

Who uses this tool?

Golf courses, athletic fields, horse farms, and virtually every large expanse of turf can benefit from the Linear Aerator.

Specifications

Weight:
Aerating Width:
Required Tractor HP:
Rotor RPM at PTO Speed:
Hitch Type:

1,050 lbs (476 kg)
58 inches (147 cm)
35-45 hp (36-34 Kw)
168 RPM
Category I / 3-Point

Rotor Width:
Overall Mounted Width:
Required PTO Speed:
Drive Chain:

60 inches (152 cm)
72.4 inches (184 cm)
540 RPM maximum
100-H

Specifications

Weight:
Aerating Width:
Required Tractor HP:
PTO Speed:
Hitch Type:

1,050 lbs (476 kg)
58 inches (147 cm)
35-45 hp (36-34 Kw)
168 RPM
Category I / 3-Point

Rotor Width:
Overall Mounted Width:
Required PTO Speed:
Drive Chain:

60 inches (152 cm)
72.4 inches (184 cm)
540 RPM maximum
100-H
