TruFlow™ 36D

earth and turf truflow 36d topdressers

The TruFlow™ 36D was designed for operators who need to fit into tighter spaces, but still desire uniform topdressing of their material. Like all TruFlow™ models, the 36D is designed for dry, flow-able materials with moisture content up to twenty percent. It spreads dry sand, compost, calcined clay and bagged materials.

Uses of the 36D included, but not limited to, baseball fields, synthetic turf fields, golf greens, and other playing surfaces that need to be refaced or replenished with a topdressing type material.

The TruFlow™ 36D can be pulled with a small lawn & garden tractor (12+ hp), zero turn mower, golf cart, utility cart, ATV, or compact tractor.

Get a Quote

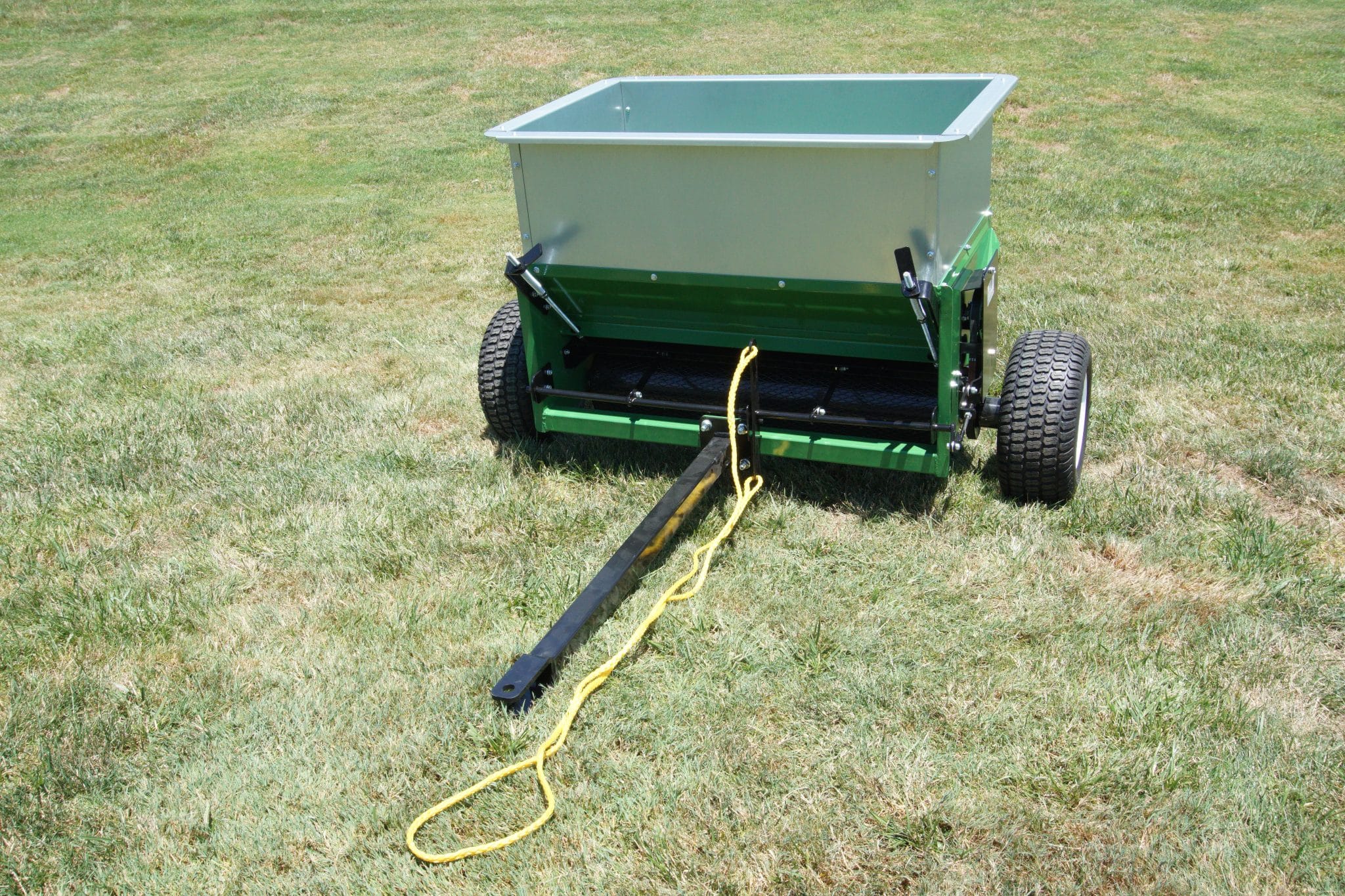

Earth & Turf TruFlow 36d tow-behind topdresser.

Tow-Behind Drop Spreader

The TruFlow 36D was designed to drop spread topdressing material in small areas that require maneuverability. The 36D is small enough to fit into tight corners yet large enough to quickly cover any size area with a uniform coat of topdressing material.

The 36D can spread any dry, flow-able material with a moisture content up to 25%. Topdressing material can include dry sand, calcined clay, crumbed rubber, and dry bagged materials (any moist or wet materials will not spread with the Truflow 36D).

This tow-behind drop spreader can be used on baseball fields, synthetic turf fields, golf greens, and other playing surfaces that need to be refaced or replenished with a topdressing type material. Other uses for the TruFlow 36D include residential landscapers.

Get a Free Quote Product Manual
compost spreaders by earth and turf products
tow behind drop spreaders by earth and turf
Earth and turf 36d Topdresser.
Earth & Turf TruFlow 36d tow-behind topdresser.

Tow-behind Top Dresser Moisture Test

It’s important to note that not all materials will spread well through these topdressers. The 36D tow-behind top dresser is designed to spread material up to 25% moisture content. The way to know if your materials will spread well is by performing a simple moisture test. If your materials are dry enough that they flow freely through your fingers when you up a handful then you will be fine running that through an Earth & Turf topdresser.

Click the button below to contact us with any questions you might have about our Earth & Turf top dressing spreaders. We can help you out with information about applications and materials or a free quote.

What Our Customers Say About The Truflow Line

Mark Blanchard

Earth and Turf provide not only a tremendous product, but their customer service is first class…Jeb and team is are amazing! They are a pleasure to work with!

Mark Blanchard

Kevn Swope

I contacted John at Earth & Turf. He was very helpful in listening to my equipment needs and helping me select and purchase the appropriate piece of equipment for our farm’s needs. He worked with us to get it ordered and shipped quickly. The equipment arrived on time and we are very happy with the quality of the it and it’s performance on our operation. They are a great company to work with!

Kevn Swope
earth and turf icon 1

What it spreads:

The TruFlow 36D only spreads material that has up to 25% moisture content. A few materials commonly spread by the 36D include: sand, crumbed rubber, calcined clay, and dry bagged materials.

earth and turf icon 2

Powered By:

The TruFlow 36D needs to be towed by a machine with at least 12 hp. Small lawn & garden tractor, zero-turn mower, golf cart, utility cart, ATV, or compact tractor can tow the 36D.

earth and turf icon 3

Who uses this machine?

The TruFlow™ 36D is used by people in a variety of occupations from golf course superintendents, landscape contractors, sports turf installers and maintenance departments.

Standard Features

earth and turf truflow topdresser 36d wheel

Ground Drive System:

The wide turf tires provide the power to the dispersal roller.

earth and turf truflow topdresser 36d end gate

Adjustable End-Gate:

The adjustable end-gate allows you to easily control the amount of material being applied when using this pull-type drop spreader.

earth and turf truflow topdresser 36d hitch

Hitch:

The 36D is a pull-behind drop spreader. The hitch on front makes it easy to hook up to your compact tractor or lawn & garden tractor.

earth and turf truflow topdresser 36d drum

Large Hopper:

The 10 cu. ft. hopper on the TruFlow 36D makes sure that you can spread for longer periods of time.

Specifications

Capacity: 10 cu. ft. (0.28 m3)

Max Load Weight: 1200 lbs. (544.3 kg)

Box Width: 38 inches (96.5 cm)

Box Length: 24 inches (61 cm)

Total Height: 36 inches (91.4 cm)

Total Width: 57 inches (144.8 cm)

Total Length: 65 inches (165.1 cm)

Spread Width: 36 inches (91.4 cm)

Spread Thickness: Up to 0.5 inches (1.3 cm)

Spread System: Drum & Drop

Weight w/ Tires: 225 lbs. (102 kg)

Tire Size: 16.00 x 6.50 - 8.00

Movement: Pull-Type / Tow-Type

Drive: Ground Drive (Single Wheel)

Required Power: 12 hp (9 kw)

Build: 12/16 Ga. Bolted Steel, 2 Part Epoxy

Specifications

Capacity:
Max Load :
Box Width:
Box Length:
Total Height:
Total Width:
Total Length:
Spread Width:

10 cu. ft. (0.28 m3)
1200 lbs. (544.3 kg)
38 inches (96.5 cm)
24 inches (61 cm)
36 inches (91.4 cm)
57 inches (144.8 cm)
65 inches (165.1 cm)
36 inches (91.4 cm)

Spread Thick:
Spread System:
Weight w/ Tires:
Tire Size:
Movement:
Drive:

Required Power:
Build:

Up to 0.5 inches (1.3 cm)
Drum & Drop
225 lbs. (102 kg)
16.00 x 6.50 - 8.00
Pull-Type / Tow-Type
Ground Drive (Single Wheel)
12 hp (9 kw)
12/16 Ga. Bolted Steel, Industrial Powder Coat
